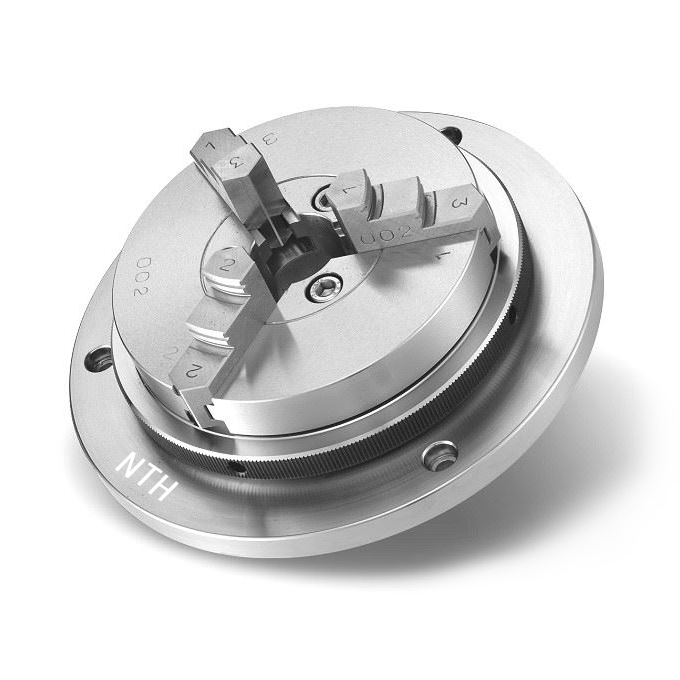

超薄型夹盘之特色：1.轻、薄、短小的设计，适用于工件量测夹持。2.直接转动旋盘，免于使用板手旋转干涉。3.钢制本体，耐用性甚佳。4.夹爪正反夹持两用设计，操作方便。5.2"最小工件夹持0.8mm.SUPER THIN CHUCKS1.By the compactness comes from "Light Thin,Short,Small" designing concept; the chucks are the most fitting to hold work pieces for measuring.By the compactness comes from"Light, Thin and Small" designing concept,the chucks are most fitting to hold workpieces for measuring.2.Just rotate the chuck knob directly for gripping and loosening,a handle is not necessary to be used.Rotating the chuck knob directly for gripping and loosening, the handle is not necessary to be used.3.Chuck body is made of very durable steel.The chuck body is made of very durable steel.4.Jaws can be reversibly used; gripping of various sizes becomes much convenient.Jaws can be reversibly used. Gripping for various sizes becomes much convenient.5.2" chucks can even grip up to the smallest size of 0.8mmThe 2"model chuck can even grip the small OD size of 0.8mm.
规格 / Specification 单位/UNIT：mm
型式/规格
MODEL/SPEC | 外径夹持范围
O.D.Clamping Range
mm | 内径夹持范围
I.D.Clamping Range
mm | 净重
Weight
kg |
|---|
| NST-02 | Ø0.8-Ø63 | Ø23-Ø58 | 1.2 |
| NST-03 | Ø1-Ø81 | Ø31-Ø70 | 2.9 |
| NST-04 | Ø1-Ø100 | Ø36-Ø90 | 4.3 |
| NST-05 | Ø1.5-Ø116 | Ø43-Ø106 | 6.2 |
| NST-06 | Ø1.5-Ø160 | Ø52-Ø148 | 11.1 |
| NST-08 | Ø4-Ø200
| Ø58-Ø185
| 16.3 |
型式/规格
MODEL/SPEC | A | B | C | D | E | F | G | H | J | K | L | M |
|---|
| NST-02 | 63 | 28 | 118 | 100 | 16 | 4 | 4-M5x0.8P | 27 | 8 | 13 | 8 | 26 |
| NST-03 | 85 | 37 | 143 | 116 | 20 | 4 | 4-M6x1P | 35 | 11 | 15 | 10.5 | 32 |
| NST-04 | 110 | 39 | 168 | 140 | 26 | 5 | 4-M6x1P | 42 | 14 | 19 | 10 | 40 |
| NST-05 | 130 | 45 | 202 | 168 | 32 | 6 | 4-M8x1.25P | 50 | 16 | 21 | 11.5 | 49 |
| NST-06 | 160 | 52 | 248 | 208 | 50 | 8 | 4-M10x1.5P | 65 | 19 | 26 | 15 | 70 |
| NST-08 | 200 | 55 | 280 | 245 | 58 | 8 | 4-M10x1.5P | 75 | 22 | 24 | 15 | 80 |
保留技术更改的权利,恕不另行通知 Subject to technology changes without prior information
非标需求可定做 Non-standard requirements can be made
