5-JAW THROUGH HOLE POWER CHUCK
Click on product image magnification
Online InquiryBrand：NTH
Multiple contact points clamping, it can avoid the deformation issue during clamping process for thin wall pipe or ring like workpiece.
Size Unit:mm
|
Spec/Model |
Plunger stroke |
Jaw stroke (Dia) |
Max clamping dia |
Min clamping dia |
Max.D.B.Pull KN(kgf) |
|---|---|---|---|---|---|
|
BW-06A5 |
12 |
5.5 |
168 |
15 |
17.1(2200) |
|
BW-08A6 |
16 |
7.4 |
210 |
13 |
34.3(3500) |
|
BW-10A8 |
21 |
8.9 |
254 |
46 |
34.3(3000) |
|
Spec /Model |
Max clamping force |
Max RPM |
Weight |
Matched cylinders |
Max.pressure |
|---|---|---|---|---|---|
|
BW-06A5 |
35.8(5500) |
5000 |
15.5 |
H-1246/HK-1246 |
2.74(20) |
|
BW-08A6 |
85.8(8750) |
5000 |
25.5 |
H-1552/HK-1552 |
2.8(28) |
|
BW-10A8 |
85.8(7000) |
2500 |
43.5 |
H-1875/HK-1875 |
2.1(21) |
|

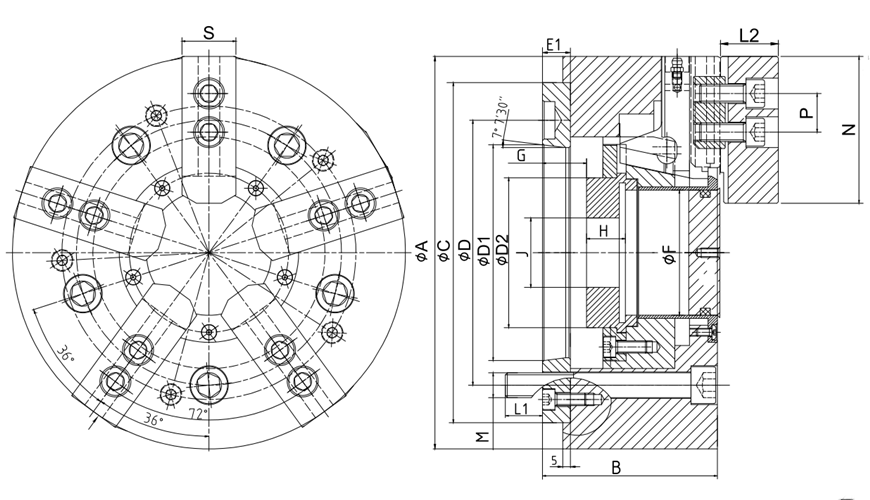

Spec/Model |
A |
B |
C（H6） |
D |
D1 |
E1 |
G max |
G min |
H |
|---|---|---|---|---|---|---|---|---|---|
|
BW-06A5 |
169 |
97 |
140 |
104.8 |
82.563 |
21 |
26 |
14 |
17.5 |
|
BW-08A6 |
210 |
103 |
170 |
133.4 |
106.375 |
17 |
31.5 |
15.5 |
20 |
|
BW-10A8 |
254 |
120 |
220 |
171.4 |
139.719 |
25 |
28.5 |
7.5 |
25 |
|
Spec /Model |
F |
L1 |
L2 |
J |
D2 |
M |
N |
P |
S |
|---|---|---|---|---|---|---|---|---|---|
|
BW-06A5 |
45 |
15.5 |
37 |
M55*2.0 |
60 |
10 |
73 |
20 |
31 |
|
BW-08A6 |
52 |
19 |
37 |
M60*2.0 |
66 |
12 |
73 |
20 |
31 |
|
BW-10A8 |
81 |
24 |
43 |
M85*2.0 |
94 |
16 |
110 |
30 |
40 |
Non-standard requirements can be made
