Brand：NTH Product Features High-Precision self Centering 2+2+2 Six-Jaw Power Chuck Main technologies The ideal choice for thin-walled workpiece, especially suitable for easily deformable components; with 2+2+2 six-jaw simultaneous clamping, it effectively reduces the impact of workpiece de...
Click on product image magnification
Online InquiryBrand：NTH
Product Features
High-Precision self Centering 2+2+2 Six-Jaw Power Chuck
Main technologies
The ideal choice for thin-walled workpiece, especially suitable for easily deformable components; with 2+2+2 six-jaw simultaneous clamping, it effectively reduces the impact of workpiece deviation;

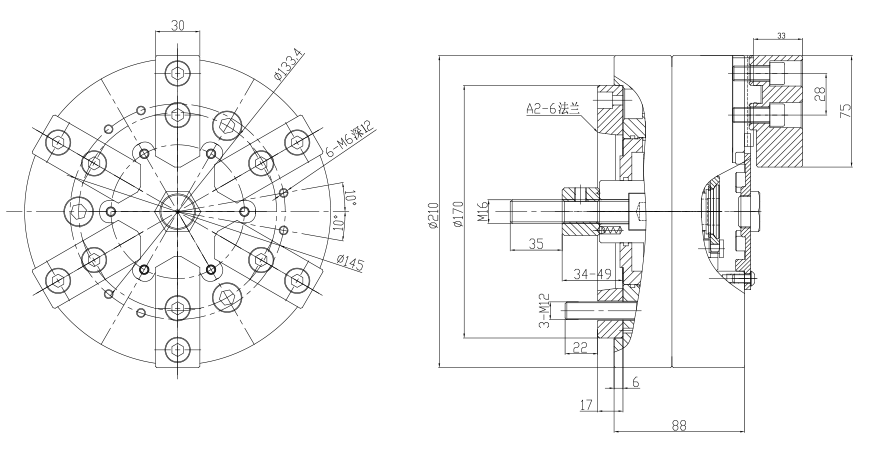

Size unit: mm
|
Model |
Plunger Stroke(mm) |
Jaw Stroke (DIA. mm) |
Max. Speed (/min) |
Max. Pull Force (KN) |
Max.Gripping Force(KN) |
Matching Cylinder |
Gripping Range(mm) |
Max.Pressure (Mpa) |
Compensation (mm) |
|---|---|---|---|---|---|---|---|---|---|
|
6EF-08A6 |
16 |
12 |
3500 |
25 |
50 |
S-125 |
17-210 |
2.3 |
±1 |
Subject to technology changes without prior information
Non-standard requirements can be made
