Suitable for high-precision axis grinding processing.

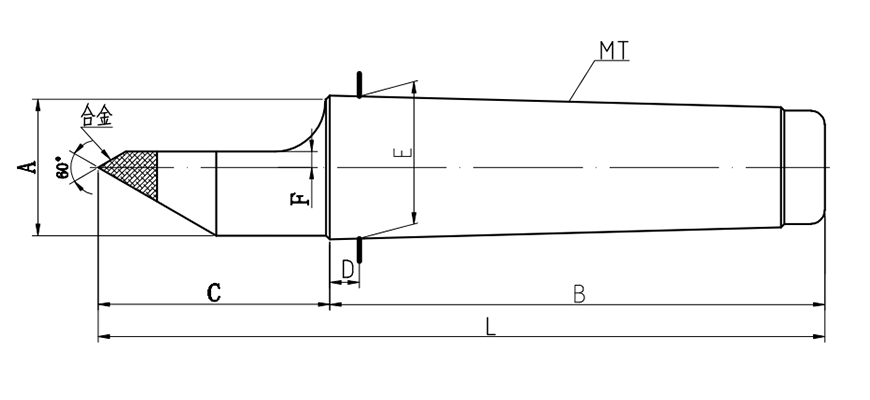

UNIT：mm
|
型式/外表尺寸 Model/Spec |
A | B | C | D | E | F | L | 合金直径 |
精度(mm) |
|---|---|---|---|---|---|---|---|---|---|
| GR-1 | 11.5 | 57 | 23 | 3.5 | 12.065(MT1) | 2 | 80 | 8 | 0.003 |
| GR-2 | 17 | 69 | 31 | 5 | 17.78(MT2) | 3 | 100 | 10 | 0.003 |
| GR-3 | 23 | 86 | 39 | 5 | 23.825(MT3) | 3.5 | 125 | 12 | 0.003 |
| GR-4 | 30 | 109 | 51 | 6.5 | 31.267(MT4) | 5 | 160 | 15 | 0.003 |
| GR-5 | 43 | 136 | 64 | 6.5 | 44.399(MT5) | 8 | 200 | 18 | 0.003 |
