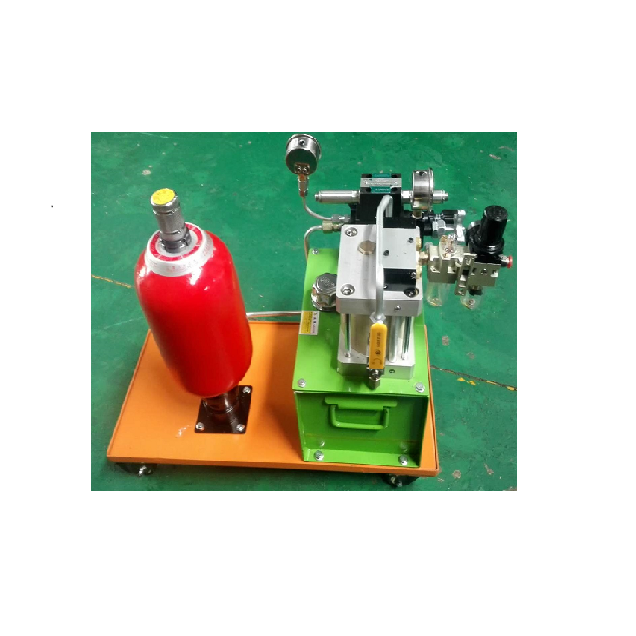

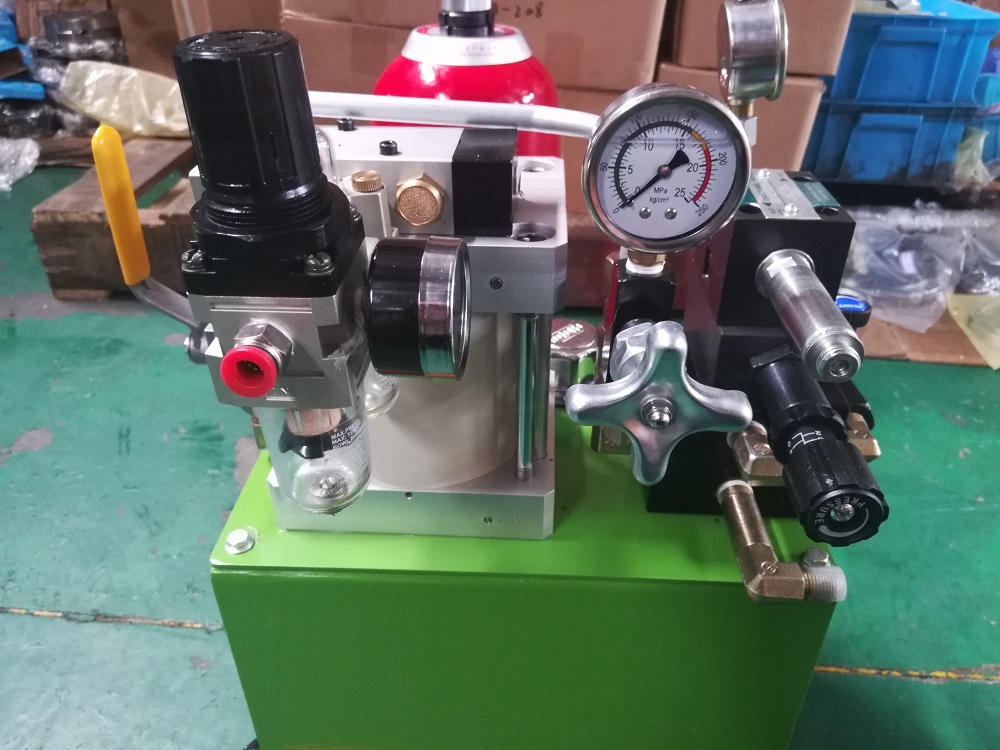

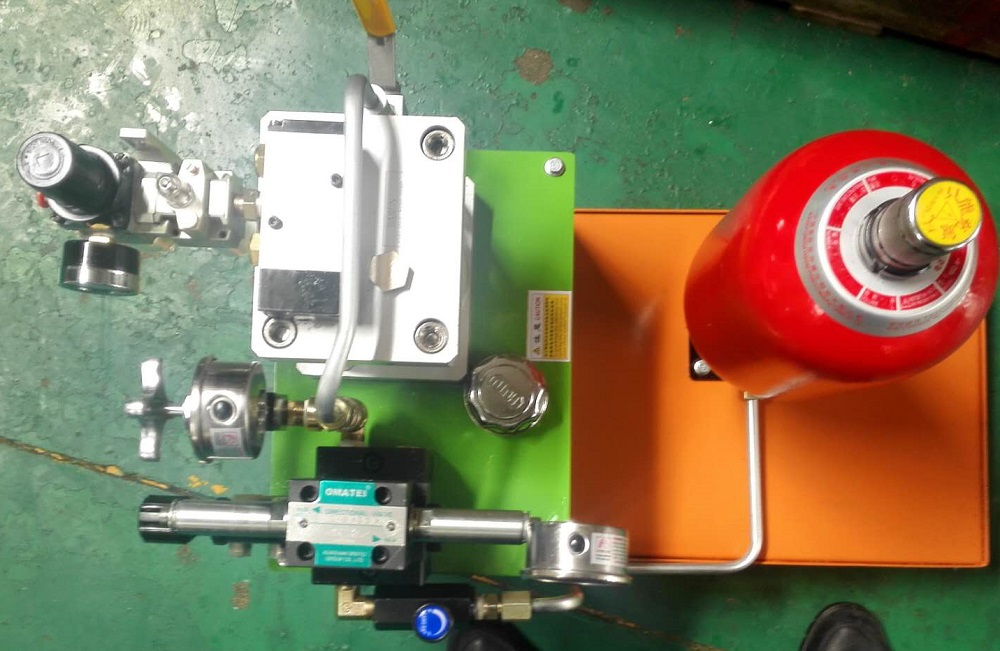

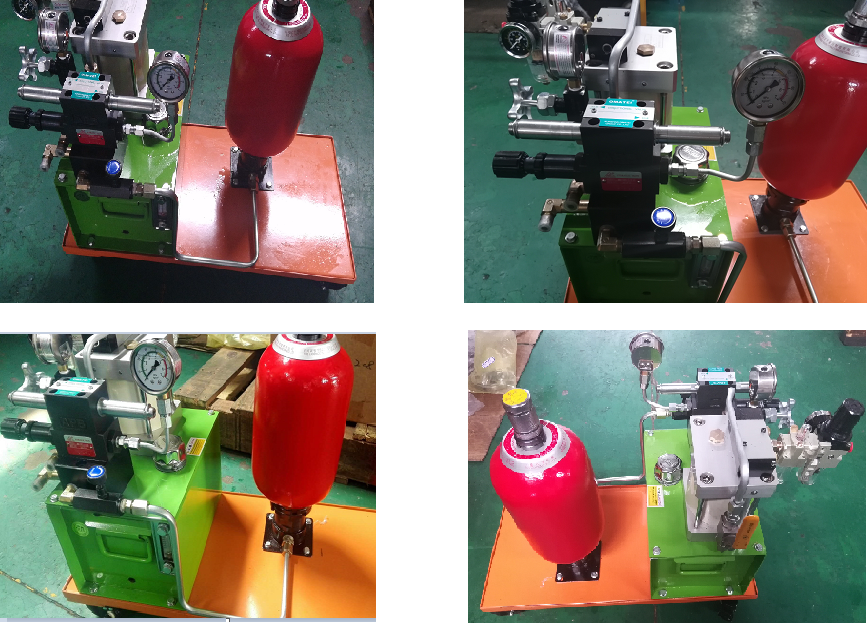

Air and Hydraulic power unit pack
Click on product image magnification
Online Inquiry
Pneumatic and hydraulic power unit pack Description：
The power source is compacted air, no need electricity, so it’s environmental and energy saving, its structure is integrated and the working performance is stable.
Technical data
1）Tank Volume：15L
2）Boost bump：LH25-18F19014
3）Air working pressure：0—0.6MPa
4）Oil working pressure：11MPa
5）Air-Oil ratio：1/19
6）Unit flow：2.5L/min
7）Solenoid:3C2-DC24V
8）Working medium temperature：10-60℃
