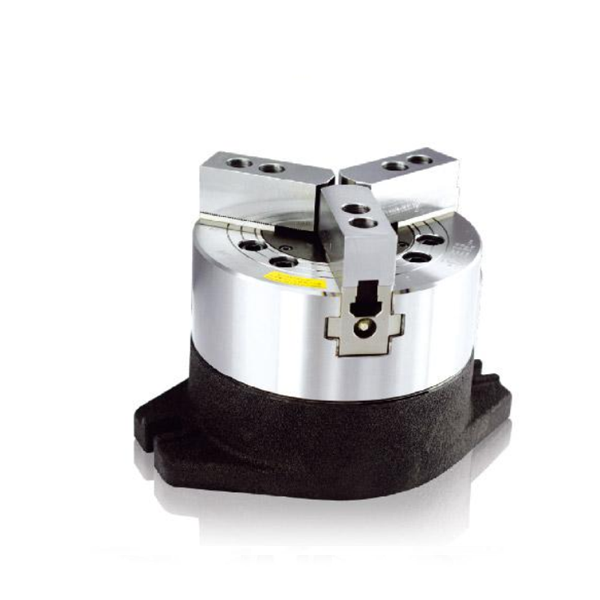

Vertical and vertical horizontal stationary power chuck
Click on product image magnification
Online InquiryFor vertical lathe, milling machine and drilling process.
Through hole design for clamping long bore workpiece, both vertical and horizontal production.
Unit : mm
| Model/size |
Piston Dia. (mm) |
Eff. piston area (cm2 ) extend / retract |
Max tube power (kgf) Extend / Retract |
Piston Stroke (mm) |
Max Hydraulic pressure (kgf / cm2) |
Weight (kg) |
For Chucks |
|---|---|---|---|---|---|---|---|
| DV-6 | Ø115 | 104 / 78.5 | 1900 / 1400 | 20 | 20 | 12 | V-206 |
| DV-8 | Ø155 | 187 / 148.6 | 3600 / 2800 | 21 | 20 | 21 | V-208, V-210, V-212 |
| DN-8 | Ø155 | 148.6 / 148.6 | 2800 / 2800 | 17 | 20 | 28.5 | N-208 |

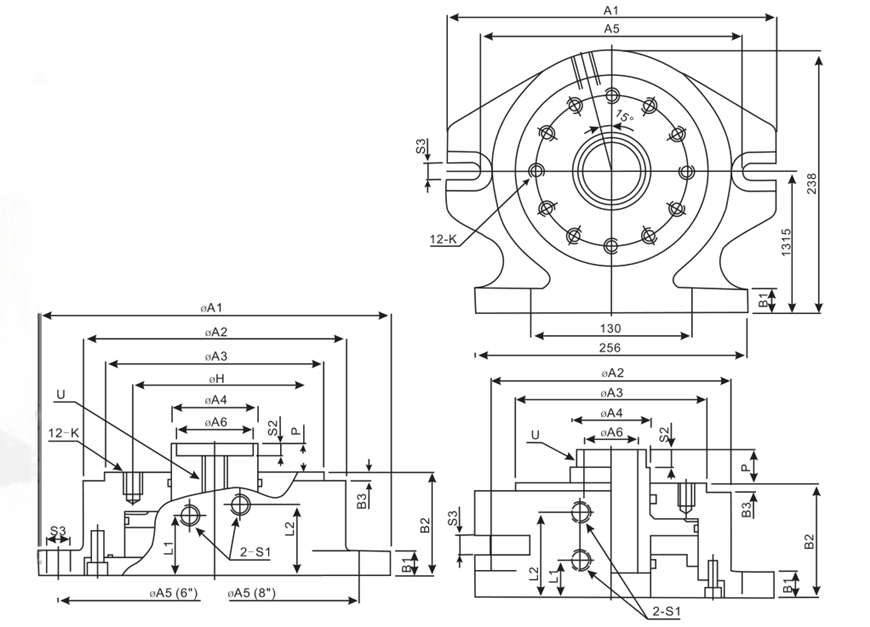

| Model/size | A1 | A2 | A3 | A4 | A5 | A6 | B1 | B2 | B3 | H |
|---|---|---|---|---|---|---|---|---|---|---|
| DV-6 | Ø220 | 168 | 140 | 55 | Ø220 | 49 | 16 | 65.5 | 5.5 | 104.78 |
| DV-8 | Ø290 | 210 | 170 | 70 | 242 | 58 | 24 | 86 | 5.5 | 133.35 |
| DN-8 | Ø293 | 213 | 170 | 70 | 242 | 52 | 24 | 100 | 5.5 | 133.35 |
| Model/size | K | L1 | L2 | Pmax. | Pmin. | S1 | S2 | S3 | U | Illutration |
|---|---|---|---|---|---|---|---|---|---|---|
| DV-6 | 12-M10x16L | 38 | 45 | 18 | -2 | PT 1/4" | 7.6 | 2-Ø15 | M16xP2.0 | Fig-1 |
| DV-8 | 12-M12x18L | 23 | 65 | 20 | -1 | PT 1/4" | 5.5 | 2-16 | M16xP2.0 | Fig-1 |
| DN-8 | 12-M12x18L | 32.5 | 74.5 | 30.4 | 13.4 | PT 1/4" | 16 | 4-17 | M60xP2.0 | Fig-2 |
