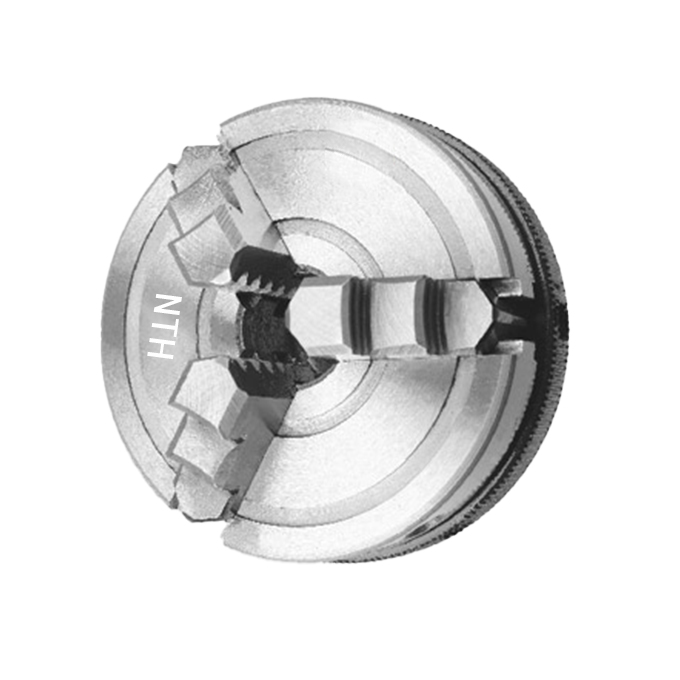

Online Inquiry4.Jaws can be reversibly used; gripping of various sizes becomes much convenient.Jaws can be reversibly used. Gripping for various sizes becomes much convenient.
Specification UNIT：mm
| 型式/规格 MODEL/SPEC | 外径夹持范围 反爪A-B O.D.Clamping Range mm | 外径夹持范围 反爪C-D O.D.Clamping Range mm | 外径夹持范围 正爪E-F | 最大夹持力 Max.Gripping Force (kn) | 净重 Weight kg |
|---|---|---|---|---|---|
| N01-50 | Ø1-Ø15 | Ø20-Ø48 | Ø20-Ø47 | 7 | 0.4 |
| N01-65 | Ø2-Ø16 | Ø25-Ø60 | Ø22-Ø55 | 8 | 0.7 |
| N01-80 | Ø2-Ø18 | Ø25-Ø75 | Ø22-Ø63 | 9 | 1.2 |
| 型式/规格 MODEL/SPEC | D1 | D2 | D3 | D4 | h | H | H1 |
|---|---|---|---|---|---|---|---|
| N01-50 | 50 | 28 | 15 | M12X1.0 | 4 | 48 | 33 |
| N01-50 | 50 | 28 | 15 | M14X1.0 | 4 | 48 | 33 |
| N01-50 | 50 | 28 | 15 | SM3/4-16 | 4 | 48 | 33 |
| N01-65 | 68 | 28 | 15 | M12X1.0 | 4 | 48 | 33 |
| N01-65 | 68 | 28 | 15 | M14X1.0 | 4 | 48 | 33 |
| N01-65 | 68 | 28 | 15 | SM3/4-16 | 4 | 48 | 33 |
| N01-80 | 84 | 45 | 25 | 3-M5 | 3 | 42 | 30 |
Non-standard requirements can be made
